40mm GD Vertical Side Head Spindle Units

Early versions of the GD were produced with left hand and right hand spindles to prevent tools coming loose during breaking. All later machines were fitted with Right Handed Lock Nuts and an Anti Spin Washer that prevent tools becoming loose.

Therefore Left Handed spindles can be replaced with new Right Hand Spindles without any issues.

View Exploded Diagram

Drawing Ref	Part Number	Description	Price
	GD GDE036	Wadkin GD Moulder 40mm Vertical Spindle Assembly - NEW	£1,950.00
	3PLYMASKx50	50x 3-Ply Surgical Style Ear Loop Face Masks For Workers (UK Stock For QUICK Delivery) 10p Each	Was £20.00 £5.00
1	GA98	Locking Nut for Wadkin XE	£45.25
1	GA408	Locking Nut for Wadkin XE	£45.25
	GA4788	Anit Spin Washer (Where Fitted) for Wadkin XE	£23.95

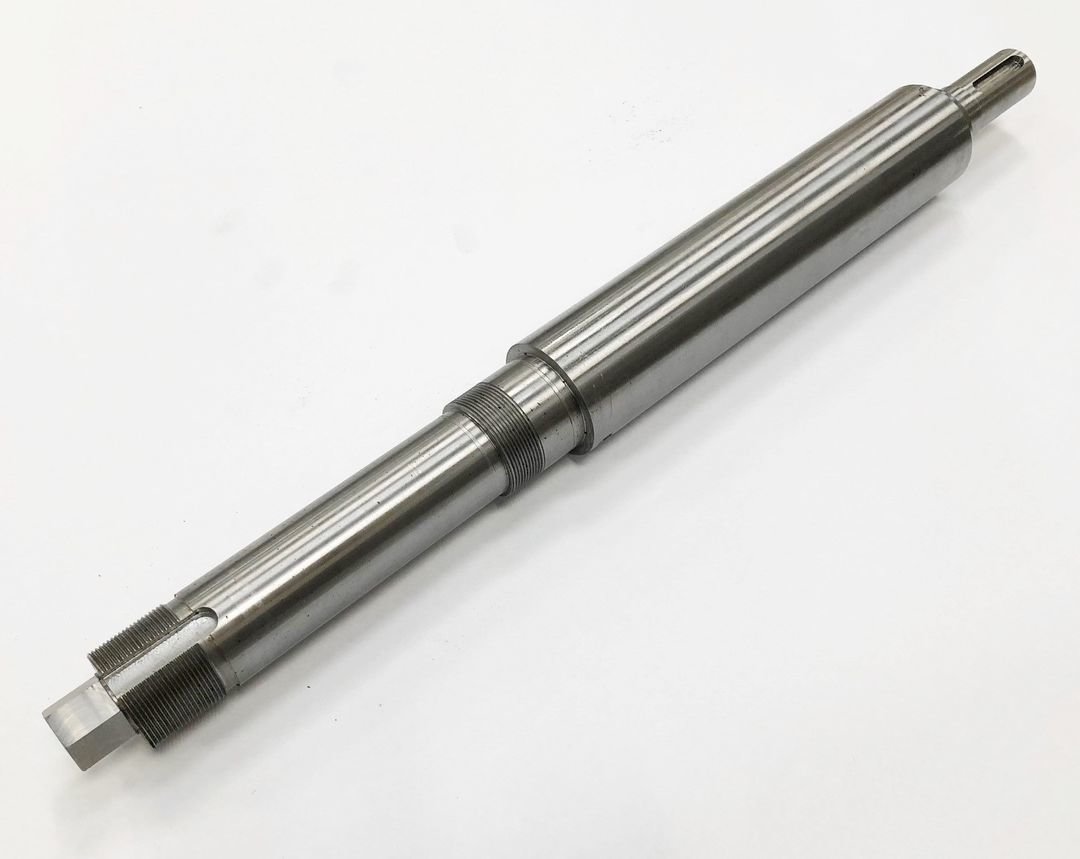

2	GA16278	Wadkin GD Moulder 40mm Vertical Spindle Shaft	£747.00
3	GA6565	Nut for Spindle Front Bearing for Wadkin XE	£115.00
4	GA6564	螺母为Wadkin XE主轴桶前轴承	£107.00
5	K0620150	Wadkin Moulder Spindle Bearings - Kluber Greased	£67.00
6	GA474	Wadkin Moulder Spindle Barrel Models GA, GB, GD & GD	£550.00
7	K0620114	Wadkin Moulder Spindle Bearings - Kluber Greased	£54.00
8	K0523144	Parallel Key For Retaing Pulley on Wadkin Machinery	£8.00
9	GA102	Wadkin Moulder Spindle Pulley Spigot Washer	£35.00
10	K0525547	Hex.Head Screw M12 x 45mm Long (Price Each)	£1.25
11	K0524201	Disc Springs For adkin Moulder Spindles (Price Each)	£5.25
12	GA1815	Wadkin Moulder Flat Belt Moulder Spindle Pulley 89mm Dia x 82mm OAL	£204.75
	MMT8721	Combination Spanner For Locking Wadkin Moulder Spindles	£193.50
