Bottom Infeed Rollers Spare Parts

Where available, we have listed below the most common spare parts for your machine to order directly from this page.

If the part you require is not listed below, please open a copy of the Wadkin XJS Manual, note the page and reference number of the part your require, and complete the form below.

Also please indicated the Machine Test And Serial Number where ever possible.

Regards the "Wadkin Bursgreen Spares Team"

View Exploded Diagram

Drawing Ref	Part Number	Description	Price	Quantity
1	GA6178	Swing Bracket For Bottom Feedroll On Wadkin Mouder	P.O.A	—

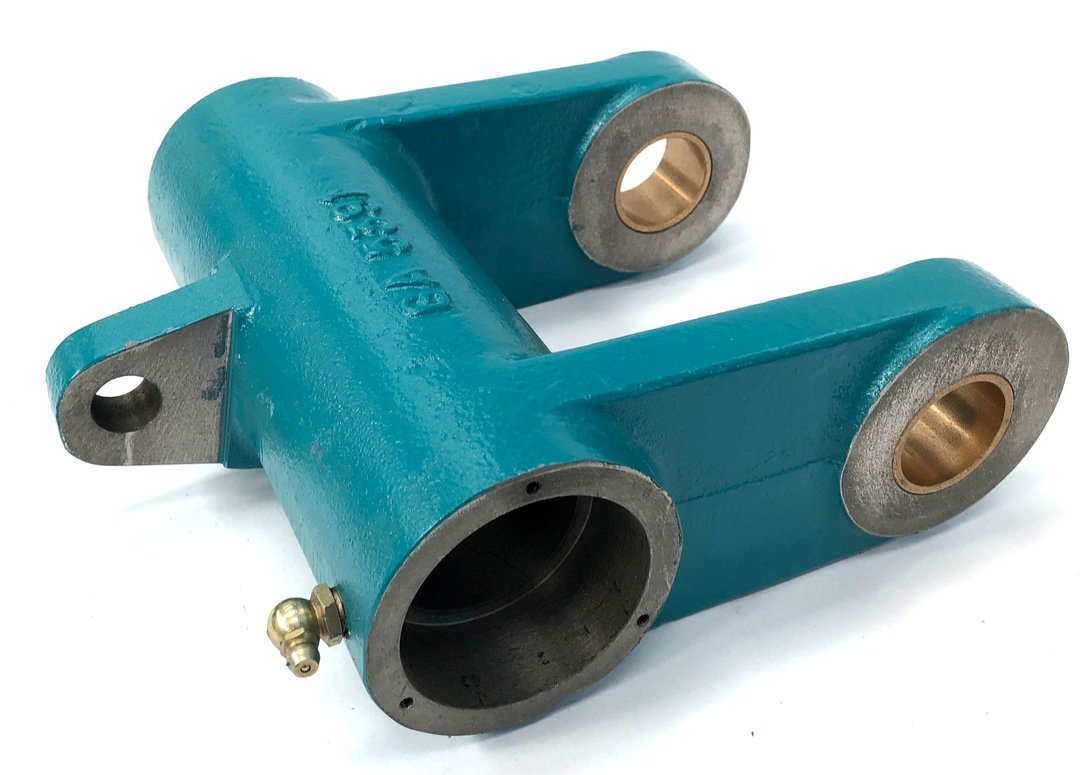

2	GA5725	Straight Leg Feedroll Swing For Wadkin Moulder (inc 2 off item 25)	£545.00
3	GA5726	Cranked Leg Feedroll Swing For Wadkin Moulder (inc 2 off item 25)	£545.00
4	GA1730	Straight Fluted Pushfeed Roller for Wadkin Moulder	£249.00
5	GA5923	Spacer	£80.00
6	GA21157	C Washer For Pushfeed Shaft On Wadkin Moulders	£39.50

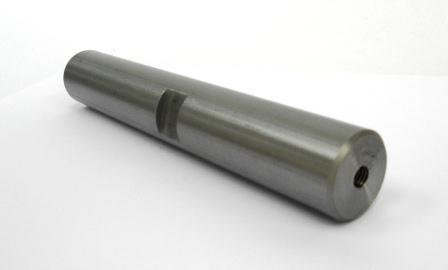

7	GA5397	Pivot Shaft For Swings On Wadkin Pushfeed Moulders	£87.00
8	GA2014	Dust Cap For Feedroller Shaft	£99.95
9	GA6191	Stop Bar	P.O.A	—
10	K0523217	Parallel Key 10 x 8 x 110mm	£8.50
5	GA15708	Mouting Braket For Top Feedroller Cyclinders on Wadkin Moulders	£169.00
11	GA5728	Feedroll Shaft For Pushfeed On Wadkin Moulders	£349.25
14	K3074341	Seal	£10.50
15	K0616179	Inner Race Bearing	£23.50
16	K0616180	Inner Race Bearing	£23.50
17	K0613309	Needle Bearing	£68.95
19	K3009134	40mm External Circlip	£1.45
21	K0601126	Ball Bearing	£18.00
22	K3009279	55mm Internal Circlip	£4.50
23	K3009140	30mm Internal Circlip	£2.95
24	K0523136	Parallel Key 8 x 7 x 36mm	£7.50
25	K0531578	Oil Impregnated Bush 35 OD x 30 ID x 25 Long	£12.00
32	K3061895	Pneumatic Cylinder For Pushfeed Rollers	£389.00
33	K3063157	Elbow Fittings	£9.75
