HT Delta 1st Bottom Head Jointer Feed Control

View Exploded Diagram

Drawing Ref	Part Number	Description	Price	Add to Basket
1	GA19238	Nut for 1st Bottom Head Jointer	P.O.A	—
2	K0525196	Hex.Socket Capscrew M8 x 65mm long	£0.50
3	GA19212	Screw for 1st Bottom Head Jointer	£207.00
4	K0527111	Hex.Locknut M12 For Wadkin Moulder	£0.25
5	GA19207	Block for Jointer Screw Mounting	P.O.A	—
6	K0525222	Hex. Socket Caphead Screw M10 x 90 long	P.O.A	—
7	K0528105	Plain Washer M12 on Wadkin machines	£0.50
8	K0531302	24 Fl Bush , 12 B X 18 OD X 8 LG for Wadkin NV	£7.50
9	GA19208	Block for Jointer Screw	P.O.A	—
10	K0525520	Hexagon Head Setscrew M8 x 40mm Long for Wadkin WT Double Ender	£0.50
11	K0527101	Hexagon nut M6 on Wadkin machines	£0.20

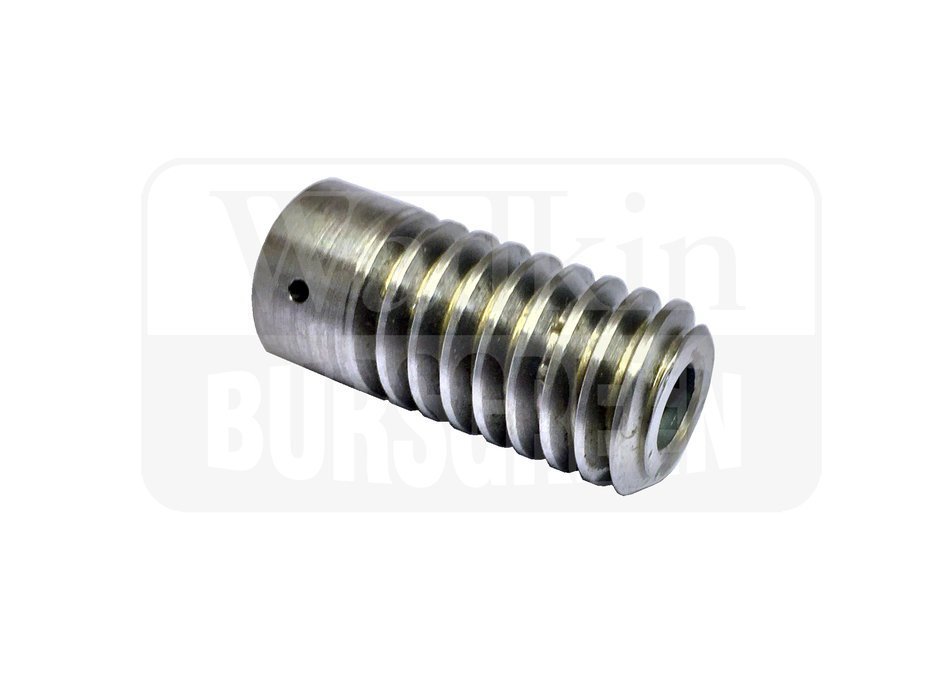

12	K3025279	Worm for Jointer Feed	£69.00
13	K3025280	Wormwheel for Jointer Feed	£121.00
14	K0527120	M5 Nut for Wadkin XE	P.O.A	—
15	K0531526	Bush 12 X 16 X 12 Lg for Wadkin NV	£2.45
16	GA19209	Block for Jointer Feed Worm & Wormwheel	P.O.A	—
17	GA19210	Control Shaft	P.O.A	—
18	K0528207	Collar for Wadkin Machinery	£24.00
	K0520484	Tension Pin 4mm X 26mm for Wadkin NV	£0.50
19	K0610315	Thrust Washer	£17.00
20	GA19211	Collar for Indexing Jointer	P.O.A	—
21	K5173102	Spring for Indexing	£2.75
22	K3005313	Steel Ball 8 dia.	P.O.A	—
23	T3009772	Universal joint for Wadkin NN VISAGE SILHOUETTE Profile Grinders - GENUINE PARTS	£85.95
24	K0520490	Tension Pin 3 dia.x 24mm long	P.O.A	—
25	GA20873	Extension Shaft for Jointer Feed	P.O.A	—
26	K0531320	24 FL.Bush 12B X 18OD X 12lg for Wadkin Silhouette	£3.75
27	GA20872	Shaft for 1st Bottom Head Jointer Feed	P.O.A	—
28	K5127146	Handwheel 12mm bore	P.O.A	—
30	GA20869	Bearing Block For 1st Bottom Head	P.O.A	—
